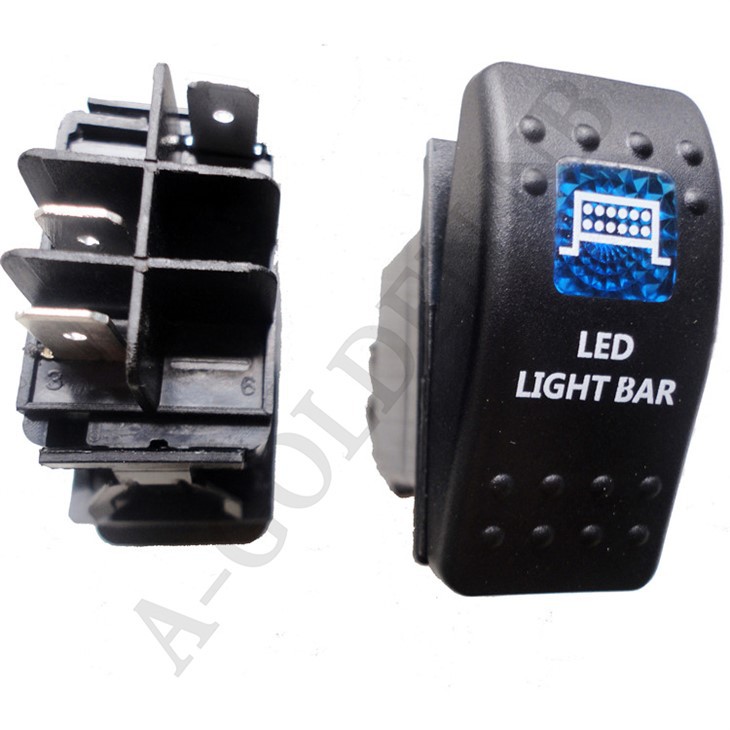

DPST 6 Pins 1 LED Rocker Switch
Max. Current: 20A DC
Max. Voltage: 24V DC
Available power: 20A/12V 10A/24V DC
Dielectric intensity 1500V AC/5S
Introduction
DPST 6 Pins 1 LED Rocker Switch can be used to control LED light bars, LED work lights, fog lights, front lights, tail lights, auxiliary lights, and other facilities. It is a commonly used power supply in various electronic devices, household appliances, cars, yachts, and RVs switches. The setting of LED etc. greatly improves the convenience of the product, because the user can easily observe the switch situation and the type of equipment controlled by the switch. Due to the high efficiency of the current flow, the response time of the switch is short and very efficient. If you want products with high sensitivity and reliable quality, please contact us.
Features
The surface of the DPST 6 Pins 1 LED Rocker Switch has raised points, so it can increase the coefficient of friction and make the keys more convenient to use.
The fire-resistant plastic material makes the product not easy to deform and safer in use.
Its service life has reached more than 50,000 times, so it can be used for a long time without replacement.
The use of high-strength alloy and stainless steel makes it not easy to rust, and the conductivity is very good, so the response is very fast.
Models
About (ON)-OFF Switch, we have more for your choice
1) SPST, 2P, 0LED
2) DPST, 4P, 0LED
3) SPST, 3P, 1LED
4) DPST 5P, 1LED
5) SPST, 3P, 2 LEDS
6) SPST, 5P, 2 LEDS
7) SPST, 4P, 2 LEDS
8) DPST, 6P, 2 LEDS
9) SPST, 4P, 1 LED
10) DPST, 6P, 1 LED
Wiring Diagram:
Please kindly check the different wiring diagram for your reference.
Details
Max. Current: 20A DC
Max. Voltage: 24V DC
Available power: 20A/12V 10A/24V DC
Dielectric intensity 1500V AC/5S
Insulation resistance: 100MΩ MIN
Contact resistance: 50MΩ MAX
FAQ
Q: Can you do OEM and ODM?
A: Yes, OEM and ODM are acceptable.
Q: Can we use our own logo?
A: Yes, we can print your private logo according to your request.
Application:
Our DPST 6 Pins 1 LED Rocker Switchare is widely used for 12V-24V Cars, RV, Yachts, ATVs, Trailers, UTVs, Trucks, Buses…
Certificate: UL, CE, RoHS, SGS, IP68
