Rocker Switch

What Is Rocker Switch

Rocker switches are among the most familiar switch types you will encounter. The definition simply requires that the switching part of the mechanism rocks between two or more positions when pressed. As one end raises, the other lowers. They are also sometimes called see-saw switches. Rocker switches can be contrasted with toggle or trip switches. With toggle switches, changing the switch position usually involves moving a small lever up or down, where it clicks into place. Rockers are not designed to move around in their housing this way. Instead, they just tilt back and forth around a central pivot point.

Advantages of Rocker Switch

01/

Versatility
Rocker switches are available in a variety of types and sizes, making them suitable for a wide range of applications.

02/

Ease of use
The rocker design is intuitive and easy to operate, making it ideal for applications where quick and easy operation is required.

03/

Durability
Rocker switches are built to last, with many models rated for thousands of cycles, making them a reliable choice for both consumer and industrial applications.

04/

Safety
Rocker switches are designed with safety in mind, with many models featuring built-in safety features such as thermal overload protection and short-circuit protection.

First 12 3 4 5 6 7 Last 1/10

Why Choose Us

Our factory
Our factory is capable to design, R&D, manufacturing the whole line of products. Besides, we also can do OEM for customers. Both our R&D team, and manufacturing team have rich professional knowledge. With the concept of R&D, design, and innovation, they are always committed to the development of new products, to get rid of the traditional switch manufacturing, and to creat a new switch atmosphere.

Our product
Our main products are rocker switch, DC socket, switch penel, fuse box, battery box, etc. And we have new items to show to customers from time to time to satisfy their more requirements.

Our service
For all customers' inquiries, we'll offer our best competitive prices based on our high qualitied products to promote the cooperations with all esteemed customers. Once orders have been confirmed we'll send the production plan to workshop immediately. And before final packing, test workshop will start inspection carefully to make sure all products with QC pass finally, then start to arrange shipping to customers by air or by sea.

Production equipment
We have different and separate workshop equipment, such as molding workshop, electronic workshop, carving workshop, assembly workshop, test workshop, etc.

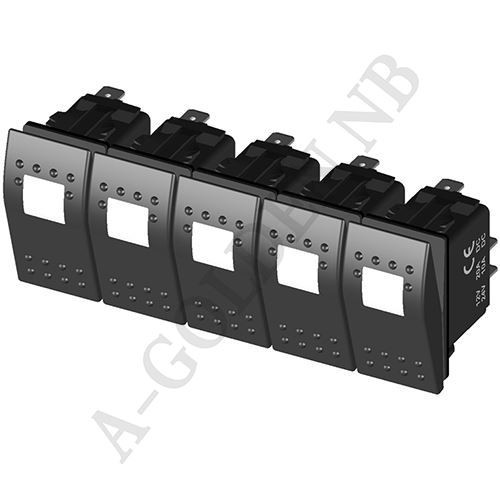

productcate-1-1

What Are Rocker Switch Used For

Household appliances
They' re commonly used in appliances such as lamps, fans, coffee makers and toasters to turn them on and off.

Electrical equipment
They; re used in a variety of electrical equipment and devices, including power tools, computer peripherals and audio equipment.

Automotive
They can be found in vehicles to control functions like lights, wipers and power windows.

Industrial machinery

In industrial settings, they' re used to control the operation of machinery and equipment.

Marine applications

They' re often used on boats and ships to control various electrical systems and equipment.

HVAC systems

They' re used to control the operation of HVAC systems, including fans, heaters and air conditioning units.

Electrical panels

They' re sometimes used in electrical control panels to manage the flow of electricity within a building or facility.

The Difference Between Rocker Switch and Toggle Switch

Wiring & functionality
Whilst choosing between dimmer and rocker switches is a little more simple, rocker switches and toggle switches have exactly the same functionality, so the key consideration is the style. When looking at the wiring requirements, these are identical for both types of switch. Both toggle and rocker switches control electricity the same way, are designed to fit within the same back boxes and can both be interchanged if needed.

Operation
Both rocker switches and toggle switches operate in the same way, as they both have a regular on/off function. Toggle switches do, however tend to offer a slightly louder ‘click’ sound when switched on or off, compared to rocker switches. Rocker switches do tend to be available in more types of switch, for example, 20 amp switches and 45 amp switches, but for general light switches, toggle switches can cover most needs. Although intermediate toggle switches can be more difficult to find, they are available (on Elesi) and can do everything that regular intermediate rocker switches can do.

Cost
Whilst the cost of electricity is the same, no matter whether you use toggles or rockers, the price of the actual switch can vary. Toggle switches tend to be more expensive than rocker switches.

Appearance
This is the main difference between toggles and rockers. Rocker switches are far more universal, fitting in with a wide range of interior design styles. They tend to look more modern, but toggle switches tend to make more of a statement. Rocker switches are available in every finish, and whilst white plastic toggle switches are available from many stores, it is the metal finishes that really bring out the best in the style of switch. Rocker switches tend to work well in contemporary and modern decors, with toggle switches fitting in perfectly to more classic and period styles, however this is far from being a hard and fast rule, as you can add a modern twist to a period style with rockers, or a classic addition to a modern interior with a toggle switch. What it really comes down to is the style and appearance, as your room may suit a toggle switch more than a rocker switch, or vice versa.

How Does a Rocker Switch Work

Operation is straightforward, usually requiring only a small amount of downward pressure on one end of the switch to move it between positions. Overall, they tend to be even easier to use than toggle equivalents, requiring little force or physical dexterity to switch them from one position to another. Depending on the number of positions offered and the manufacturing quality of a given unit, rocker switches can be slightly more prone to temporary sticking between positions than some toggle-style alternatives. To help avoid this, some are designed with integrated spring-loading, meaning that they will automatically return to a neutral position when not being pressed. This is often the case with switches for things like powered window or seat controls in cars.

Given the number of positions, rocker switches can be seen prone to temporary sticking between its general toggle-style. And to keep the function more smooth, the switches are designed with spring loading integration, which means that in case of uncertainty it will automatically return to the neutral position even without being pressed. Its simple designed structure makes it easy to augment the structure with advanced features. Adding indicative lighting being the one, there are several ways to engineer the design as per the requirements.

A simple breakthrough of the structure that makes this type of rocker switches work helps with a better understanding of the mechanism. Most of these switches are designed to manage & control relatively simple circuits through physical command. Given the increase in the specifications, mechanisms & configurations; the switches are designed to control through different positioning in complex ways. It is important to take care of the circuit by using a systematic integration of the electric switch with perfectly maintained configuration. Using switches that maintain the safety of the circuit along with maintaining the optimum flow of current is of utmost importance.

Common Types of Rocker Switches in Circuit Design

Single pole, single throw (spst)
An spst has a single input and can connect only to one output. Meaning it only has one input terminal and one output terminal. It serves in circuits as an on-off switch. When the switch is closed, the circuit is on. Vice versa. Spst switches are, thus, very simple in nature.
A desk fan has a single rocker switch that turns it off or on. The rocker controls one circuit and has one on position, making it an spst switch.

Single pole, double throw (spdt)
An spdt has a single input and can connect to and switch between two outputs. Unlike spst, it has one input terminal and two output terminals. It can be used for various functions in a circuit, such as an on-off switch, depending on how the circuit is wired. It also can connect the circuit to any two various paths that a circuit may need to function in. A similar desk fan has a single rocker switch. But the rocker can select between off, low-power, and high-power modes. The rocker can control one circuit with two on positions, making it an spdt switch.

Double pole, single throw (dpst)
A dpst has two inputs and two outputs, with each input having a single corresponding output. The terminals can either be in the on position (closed) or the off position (open). What makes it different from the previous two is it accepts double inputs. And with that, it can drive two different outputs in a circuit. What it drives depends on the circuit designs and what it is intended to do. All in all, a dpst has various applications in circuits. A hairdryer has a single rocker switch that turns it either off or on. When it is on, the power is delivered to both the blower motor circuit and the heating element circuit. The rocker controls two circuits and has one on position, making it a dpst switch.

Double pole, double throw (dpdt)
A dpdt consists of six terminals, two of which are independent input terminals. Each of the poles can complete two different circuits. In other words, each input terminal connects with two output terminals. Plus, all four of the output terminals are separate. Dpdt switches are the most advanced type of rocker switch. A similar hair dryer has a single rocker switch. But the rocker can select between off, low-power, and high-power modes. The rocker can control two circuits and has two on positions, making it an spdt switch.

Rocker Switch Construction

1.Operation button

This operation button is operated manually by pushing a switch between ON & OFF. Some kinds of switches are available with printed symbols on the button to specify the ON/OFF condition.

2.Sealing rubber

Sealing rubber is one type of rubber component that seals the switch to protect it from moisture.

3.Spring

The spring in the switch is a semi-elliptical leaf spring that is connected through contact to the end. Once the switch is turned ON then the spring moves the contact instantly to the fixed contact & uses high contact power for a stable contact between the two. But, when the switch is turned OFF, the contact’s release force can be increased which helps in avoiding contact welding.

4.Cover

The cover of the switch is a resin component that wraps the internal case to protect the sealing rubber into position.

5.Contacts & Terminals

The fixed contact is designed by connecting a contact to one of the ends of the terminal. The rocker switch wiring diagram is shown below. This circuit can be built with a battery, a fuse, a rocker switch, and a motor. The connection of this circuit can be done like this; Here, the power pin of the switch gets power from a 12v battery. A fuse is connected in between a battery and a switch. Sometimes, rocker switches are able to bear a certain amount of current, so fuses are connected in between the power source & power pin of the switch to protect the switch from excessive current otherwise it could harm otherwise destroy the motor. This circuit is used to turn ON and OFF the motor. Once the switch is turned ON, then the DC motor will be turned ON and operates immediately. Once the same switch is turned OFF then the DC motor will be turned OFF, so it will not work because it doesn’t get power from the power source like a 12v battery.

How Do You Install a Rocker Switch

If it were me doing this - the first thing that I would do is to look for blanked-out switch positions on the front fascia and dashboard. The wiring harness may be standard over a wide range of variants and installed options and so that blanked-out switch position might have wiring loom connectors just waiting to be used, right behind it.If so, I’d use the colour coding/marking of those wires, together with the vehicle’s circuit diagram, to see if it will do the job needed. It quite possibly is already wired to the fuse panel - but may need a fuse to be inserted. There may even be a blank in the panel that needs to be replaced with a fuse holder.

If that all looks good - it’s often possible to get the correct switch as a spare, from the main dealer or elsewhere. That switch may come with a range of markings - if none is suitable, there is probably also a blank one in the range. The switch doesn’t need to have the same or higher rating than the application - a low voltage DC solid state relay will handle the load current switching.Only if that strategy fails, and, IME, it rarely does (other than on much older vehicles) - then I’d identify a suitable place, buy a suitable switch and follow the instructions that came with the switch. Including ensuring that the supply side is fused . I wouldn’t worry too much about the current rating of the “suitable” switch - better to use it to control that low voltage DC solid state relay. The relay can be located to minimise the conductor requirement for the load.

That switch may be just directly controlling a low current signal going to the car’s computer. If the car utilises a bidirectional data bus to control peripherals - often even better. Because the bus goes throughout the vehicle - so, even though the switch was intended to control front fog lights, the decoder needed to do that can be hung anywhere on the bus. So it can be used to control the power going to a rear fitted reversing camera.

FAQ

Q: What is a rocker switch?

A: A rocker switch is a type of electrical switch that rocks back and forth to open or close an electrical circuit.

Q: How does a rocker switch work?

A: A rocker switch has a lever that rocks between two positions, allowing the contacts inside the switch to make or break the electrical connection.

Q: What are the common applications of rocker switches?

A: Rocker switches are commonly used in household appliances, automotive vehicles, electronic devices, and industrial equipment to control power, lighting, and other functions.

Q: What are the different types of rocker switches?

A: Rocker switches come in various configurations, including single-pole, double-pole, momentary, illuminated, and waterproof options to suit different applications.

Q: Can rocker switches be customized with different designs or colors?

A: Yes, rocker switches are available in a wide range of designs, colors, and styles to match the aesthetics of the application or user preferences.

Q: Can rocker switches be used in marine applications?

A: Rocker switches designed for marine applications are waterproof, corrosion-resistant, and suitable for use on boats, yachts, and other marine vessels.

Q: How do rocker switches compare to other types of switches?

A: Rocker switches offer a distinct rocking motion for easy operation compared to toggle switches, push-button switches, and rotary switches, providing a tactile and visual feedback to users.

Q: Are there rocker switches with multiple poles for complex circuits?

A: Yes, double-pole or triple-pole rocker switches are available for applications that require multiple circuits to be controlled simultaneously or independently.

Q: Can rocker switches be used in industrial control panels?

A: Rocker switches are commonly used in industrial control panels to operate machinery, equipment, and systems with ease and reliability.

Q: What are the different sizes of rocker switches available?

A: Rocker switches come in various sizes, from miniature switches for compact applications to larger switches for industrial or heavy-duty use, providing flexibility in design and installation.

Q: How do rocker switches contribute to user convenience and safety?

A: Rocker switches offer intuitive operation, clear on/off indication, ergonomic design, and reliable performance, enhancing user convenience and safety in various applications.

Q: How do you troubleshoot a faulty rocker switch?

A: If a rocker switch is not working properly, you can check the wiring connections, test the switch with a multimeter, or replace the switch if necessary.

Q: Can rocker switches handle high current or voltage?

A: Rocker switches are available in different ratings to handle various current and voltage levels, so it's important to choose the right switch for the specific application.

Q: Are there rocker switches with built-in safety features?

A: Some rocker switches come with safety features like overload protection, short-circuit protection, and tamper-resistant designs for added safety.

Q: Can rocker switches be used in outdoor or harsh environments?

A: Yes, there are rocker switches designed for outdoor or harsh environments that are waterproof, dustproof, and resistant to extreme temperatures and conditions.

Q: How do you clean and maintain a rocker switch?

A: You can clean a rocker switch with a soft cloth and mild detergent, avoid using abrasive cleaners, and regularly inspect the switch for any signs of wear or damage.

Q: Are there rocker switches with LED indicators?

A: Yes, illuminated rocker switches feature LED indicators that light up when the switch is turned on, providing visual feedback and enhancing visibility in low-light conditions.

Q: Can rocker switches be used in automotive applications?

A: Rocker switches are commonly used in automotive applications to control lights, wipers, windows, and other functions in vehicles.

Q: How do you choose the right rocker switch for a specific application?

A: When selecting a rocker switch, consider factors such as the electrical rating, switch configuration, mounting style, and environmental conditions to ensure compatibility and performance.

Q: Are there rocker switches with momentary functions?

A: Yes, momentary rocker switches are available for applications where a temporary or pulse signal is required, such as in electronic devices or machinery.

As one of the leading rocker switch suppliers in China, we warmly welcome you to buy discount rocker switch from our factory. All customized products are with high quality and competitive price. Contact us for more cheap products.
