VOLTAGE SENSING REPLAY 12V

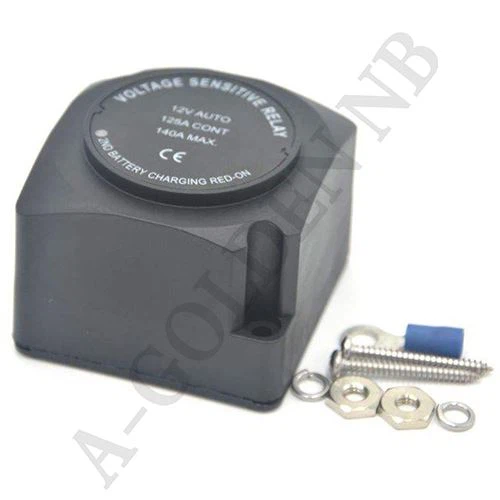

Marine Battery Isolator Switch

Dual Batttery Isolator Kit 12V 140A with Volatage Sensitive Relay Boat VSR Double Battery Automatic Charger fits RV, UTV, Car, Boat, etc...

Features of Marine Battery Isolator Switch

1) Automatically combines two batteries when charging and isolates the two batteries when not charging.

2) Robust Glass Fiber reinforced Nylon enclosure

3) Built-in LED indication (ON when VSR engages)

4) Port  for remote LED indicating VSR status (LED not included)

5) Surface or panel mount options provides flexibility when installing

6) Optional Storage Mode allows zero power consumption when engine is off.

Specification of Marine Battery Isolator Switch

1) Nominal Voltage: DC12V

2) Combine / Open Voltage: DC13.3V~12.8V

3) Continuous Current Rating: 125A

4) Intermittent Current Rating: 140A

5) Power Consumption: Stand by 10mA, Engage 330mA, Storage Mode 0mA

Models of Marine Battery Isolator Switch

About battery isolator switch, here we have two models for your reference,

1) As attached model VSR-2008/12V without cable.

2) And we also have the volatage sensitive relay with cable for your order purpose.

Packings of Marine Battery Isolator Switch

About battery isolator switch without cable, usually we have 2 kinds of packing for your choice.

1) The 1st packing is with white box.

2) The 2nd packing for your choice is with blister.

3) And you also can choose it with color box, when your qty is up to our minimum quantity.

Certification

For the battery isolator switch, here we have it with CE approved.
